Observed soundings at Maniwaki - December 6-7
Notes:

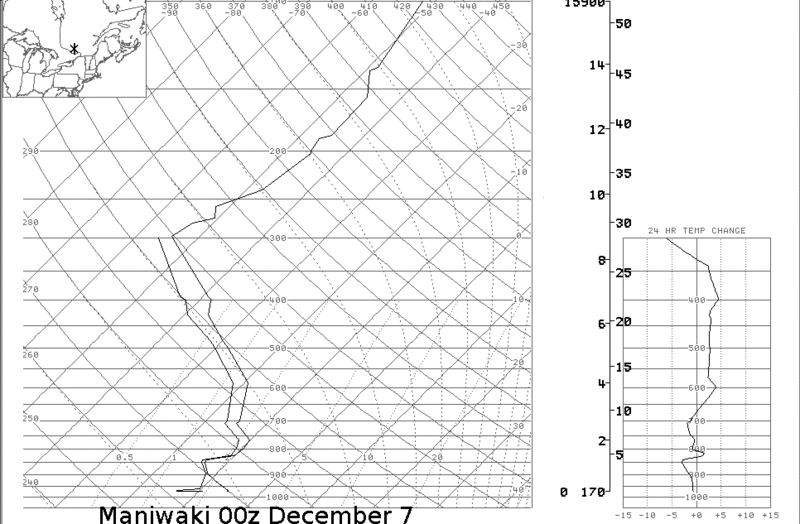

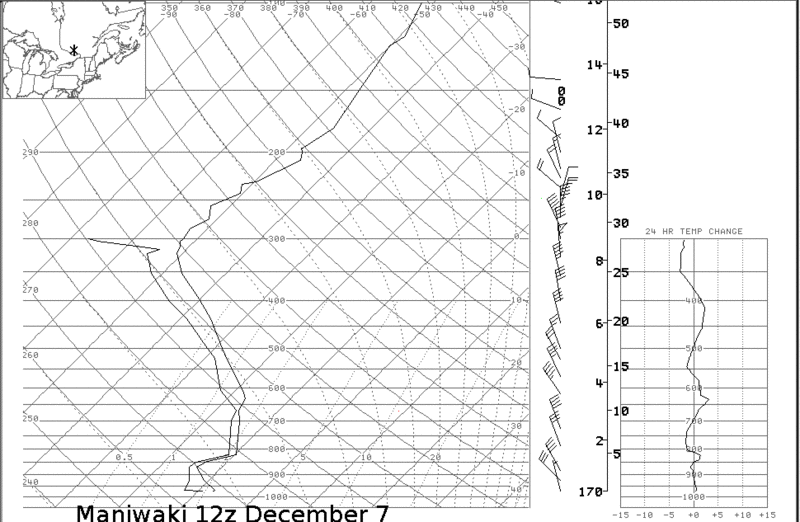

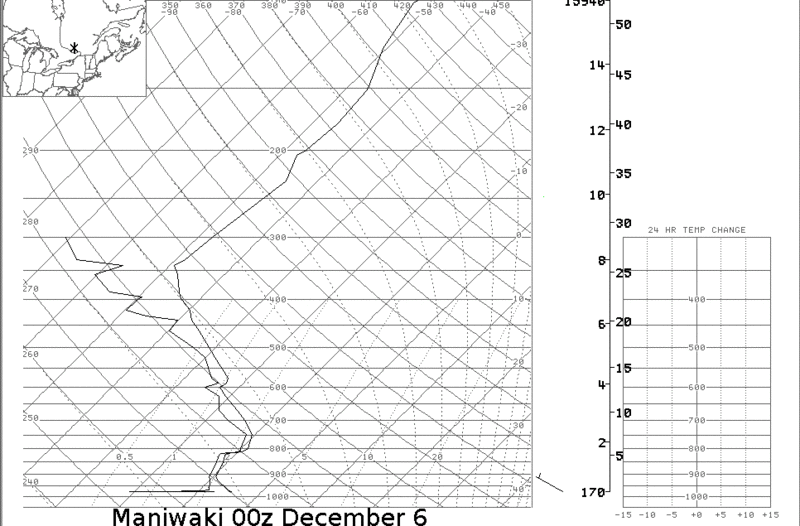

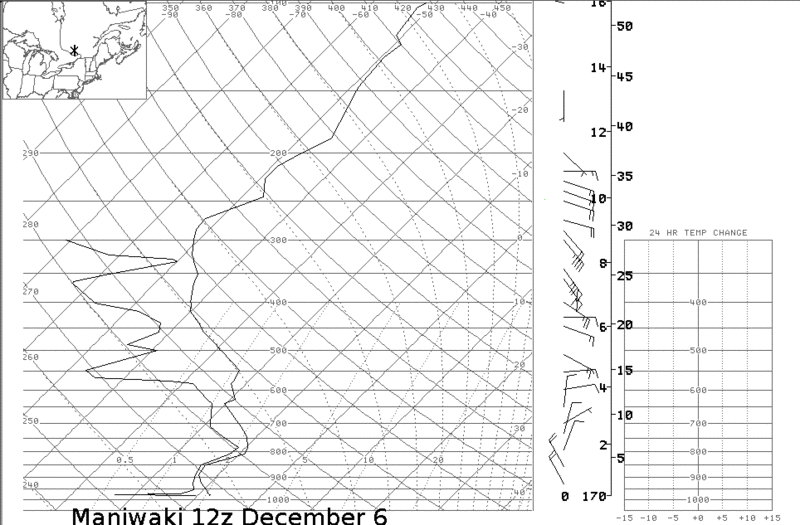

Sounding data from Maniwaki, located north of Lake Ontario, indicated deep synoptic-scale moisture from the 6th through the 7th. The moist layer extended above 500 mb on 3 of the 4 periods shown. A subsidence inversion can be seen around 850 mb through the period.|
Switch images by moving your mouse pointer over the links below...
Valid 0000 UTC 06-Dec-2010 Valid 1200 UTC 06-Dec-2010 Valid 0000 UTC 07-Dec-2010 Valid 1200 UTC 07-Dec-2010 |
|
Slide 8
