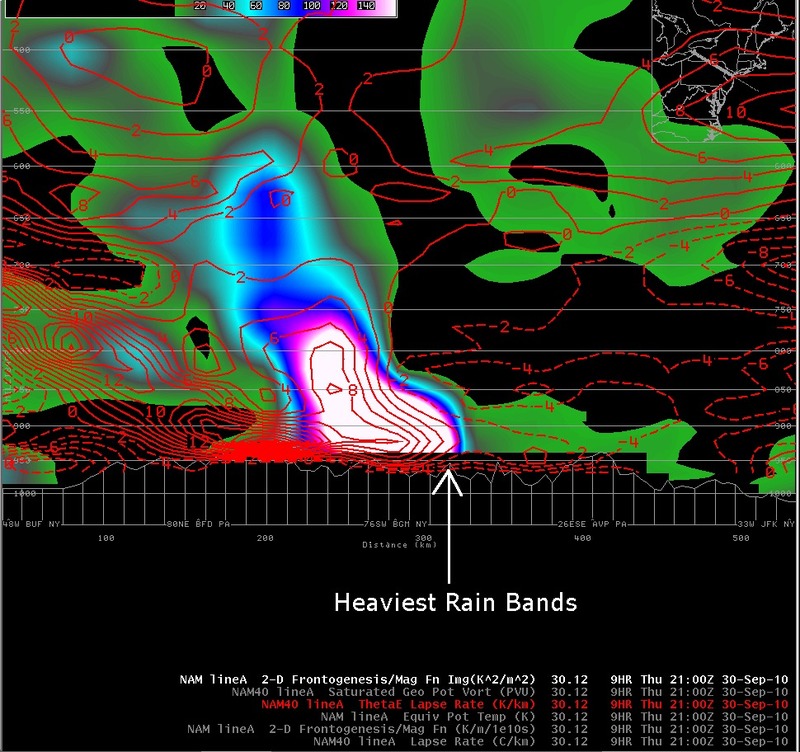

9 hr NAM frontogenesis and lapse rate cross-section – 21z 9/30

Notes:

This cross section of frontogenesis (filled) and lapse rate (red contours) shows the strong frontal zone associated with the heavy rain. The location of the heaviest rain bands at this time is annotated in the figure.

slide 12



Slide 12
