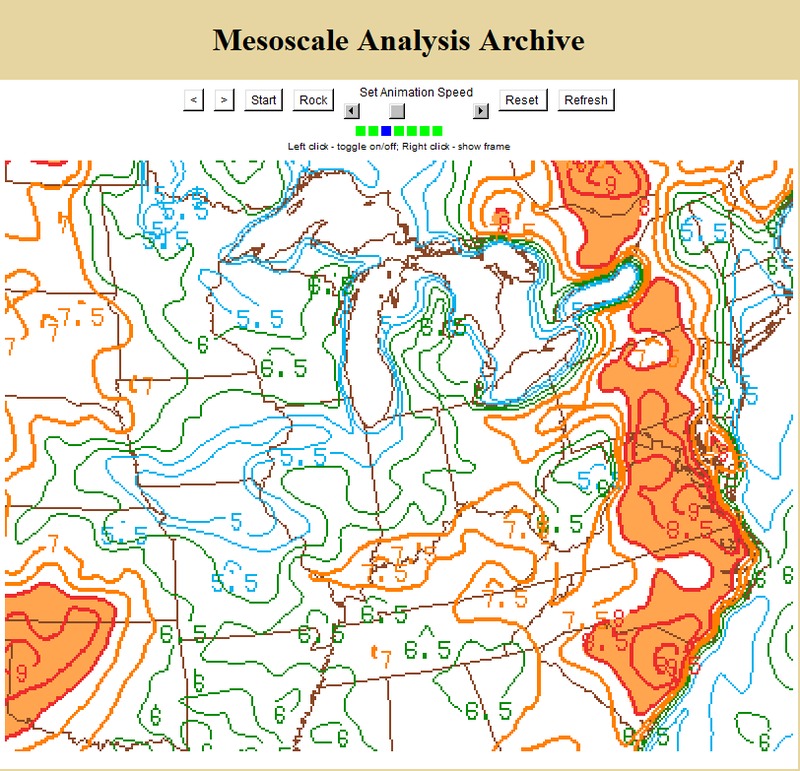

CAPE and sfc-850 mb lapse rate at 18z
Notes:
This data from the storm prediction center shows that a narrow wedge of CAPE values greater than 1000 J/kg and low-level lapse rates greater than 8 degrees C per km developed in the warm sector in central New York and eastern Pennsylvania by early afternoon on the 22nd.
Switch images by moving your mouse pointer over numbered buttons...
|
|
|
Slide 8
