Storm relative velocity

Notes:

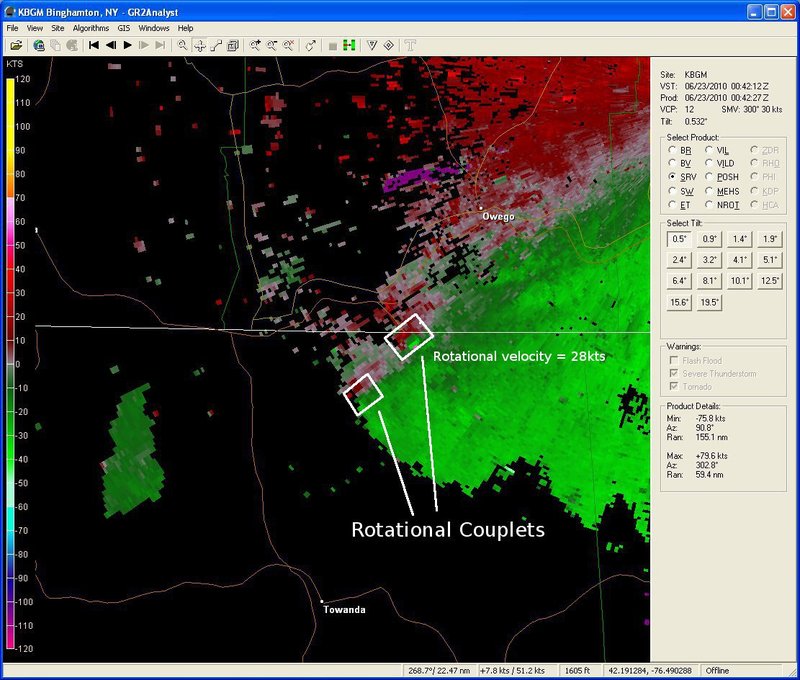

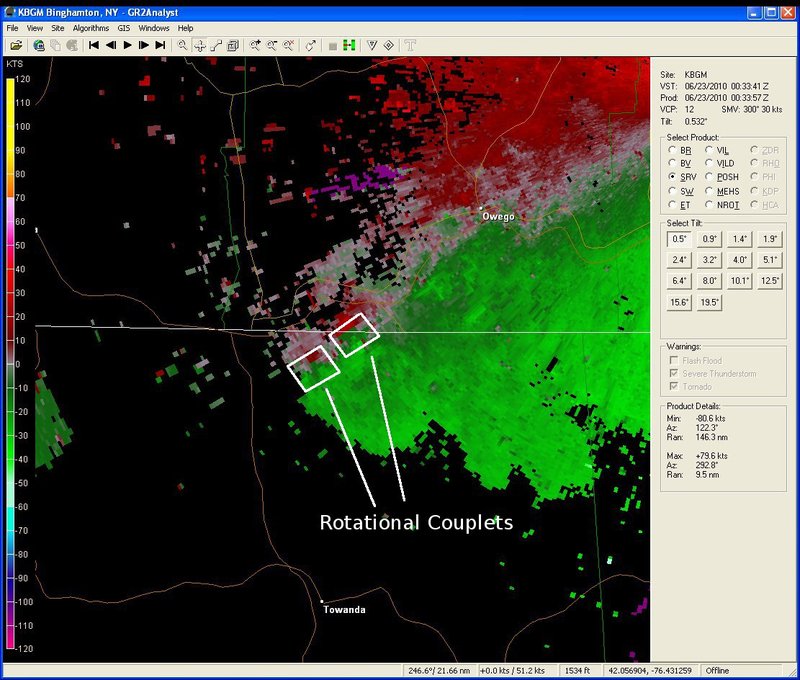

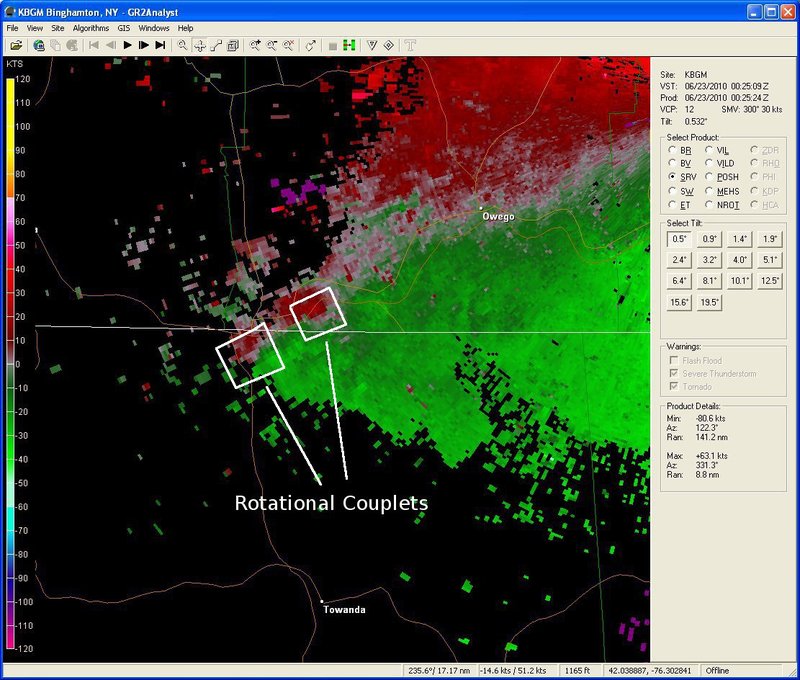

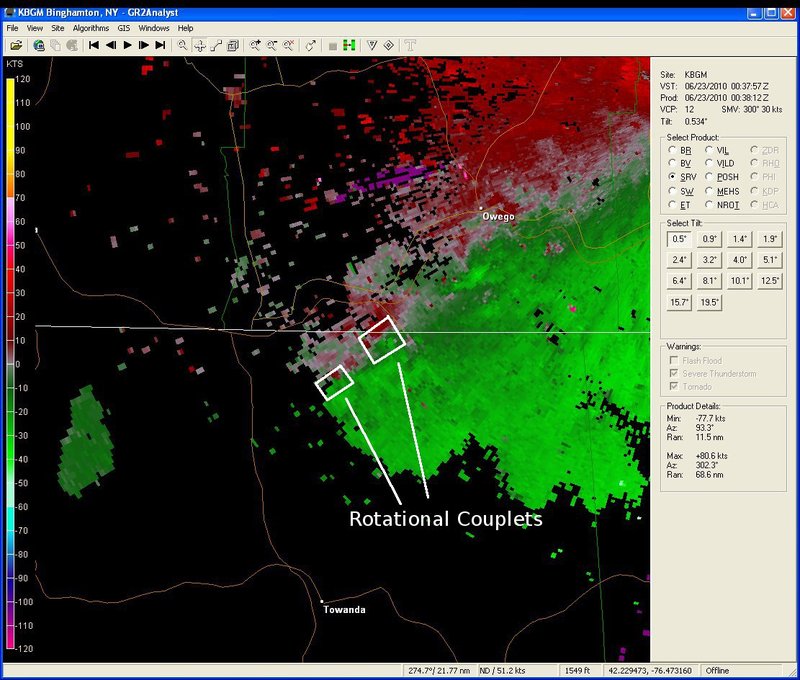

0.5 degree storm relative velocity loops indicate two persistent, rotational couplets for several minutes prior to tornadogenesis. The strongest couplet, with rotational values around 34 kts, produced the tornado around 2042z. Storm relative velocity at other levels (not shown) indicate that this storm exhibited rotational values of 20-30 kts for several volume scans through a deep layer prior to tornadogenesis.

Switch images by moving your mouse pointer over the links below... Valid Wed 0025 UTC 23-Jun-2010 Valid Wed 0029 UTC 23-Jun-2010 Valid Wed 0033 UTC 23-Jun-2010 Valid Wed 0037 UTC 23-Jun-2010 Valid Wed 0042 UTC 23-Jun-2010
