Mesocyclone strength nomogram
Notes:

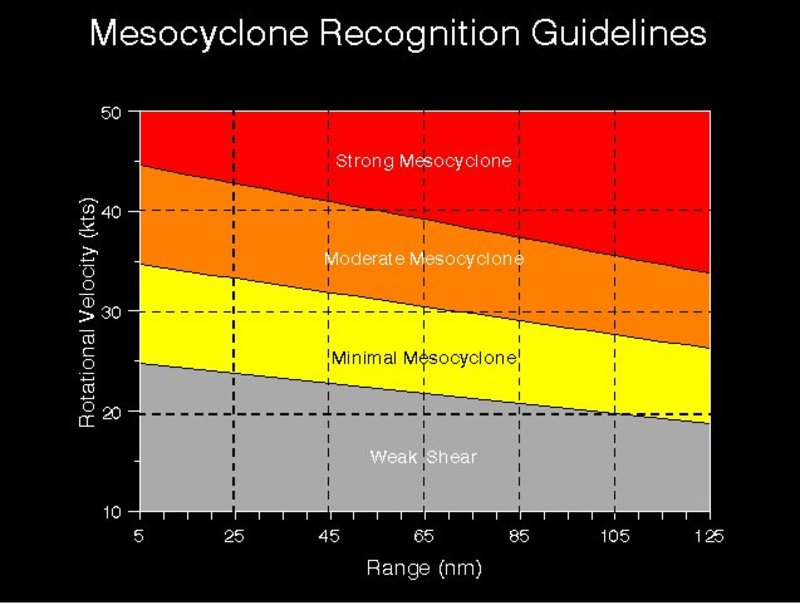

This mesocylone strength nomogram indicates that the mesocyclone associated with this storm could be classified as “high-minimal” moderate prior to tornado touchdown (rotational values near 30 kts at a range of 30 to 50 nm from the radar).
Slide 17
