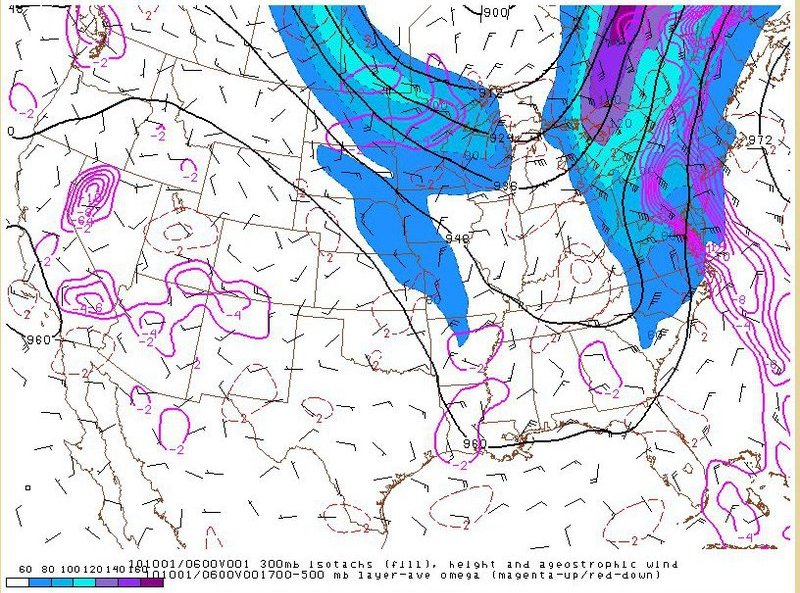

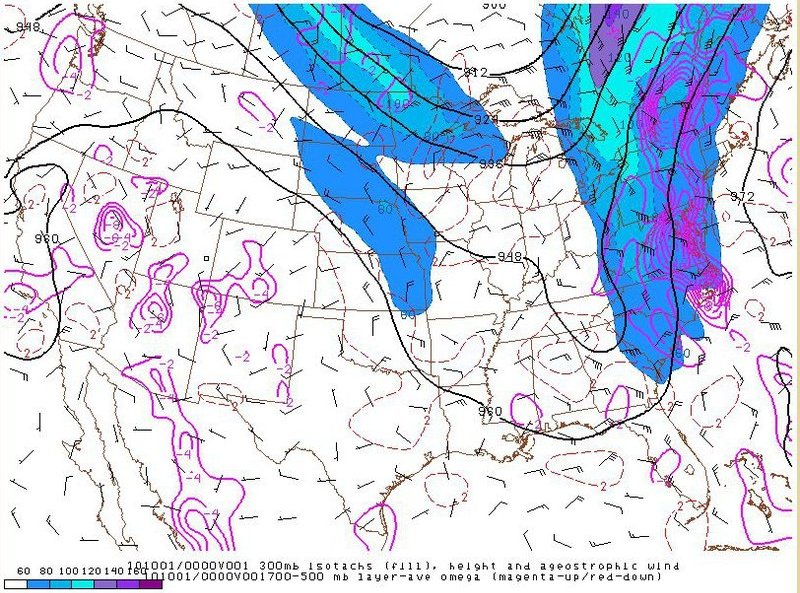

SPC - 300 mb heights, wind speed, ageostrophic flow and deep-layer lift
Notes:
Northeast Pennsylvania and central New York were located in the right rear quadrant of the upper level jet through the event. The result was a long period of large-scale forcing for upward vertical motion across the entire area.|
Switch images by moving your mouse pointer over the links below...
Valid 1800 UTC 30-Sep-2010 Valid 0000 UTC 01-Oct-2010 Valid 0600 UTC 01-Oct-2010 |
|
Slide 8
 |
|||
