Analogs
Notes:

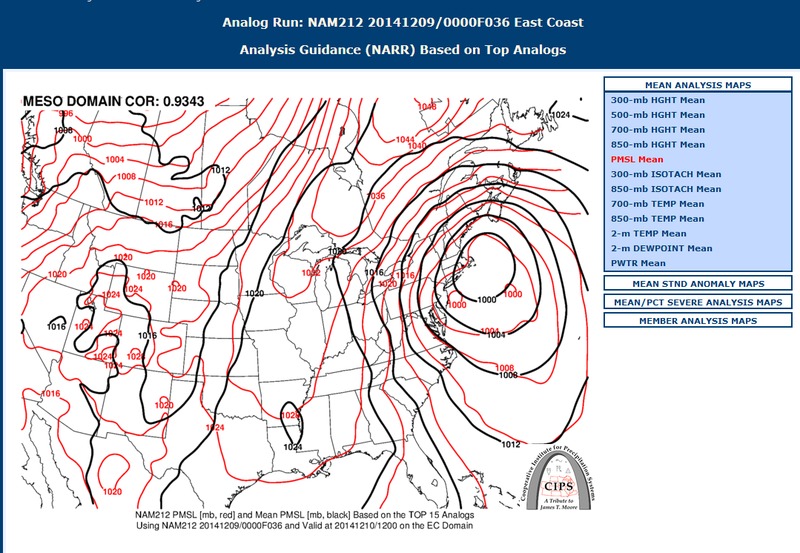

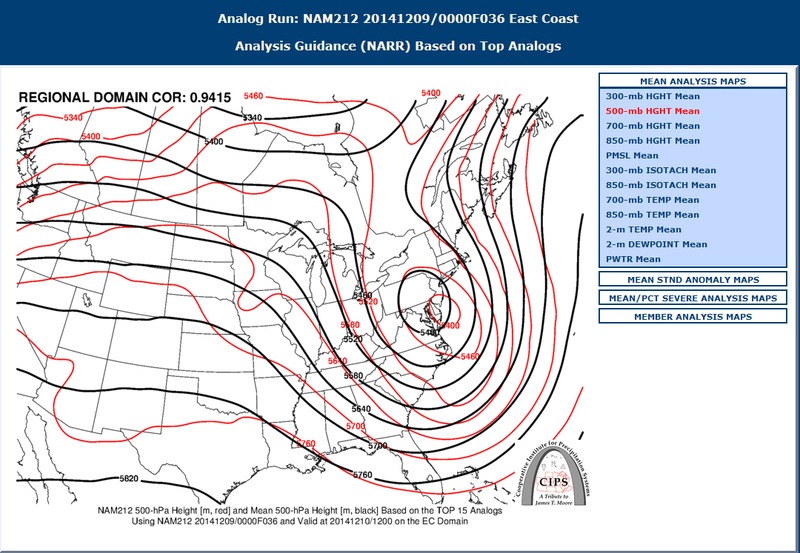

Analogs for this event are shown on the next few slides. These are produced by the Cooperative Institute for Precipitation Systems at Saint Louis University. The mean 500 mb pattern for the analogs is shown on the left, and the mean sea-level pressure pattern for the analogs is shown on the right. Key features are the mid-level closed low along the mid-Atlantic coast and surface low pressure south of Cape Cod.
Switch images by moving your mouse pointer over numbered buttons...
|
|
|
Slide 11
