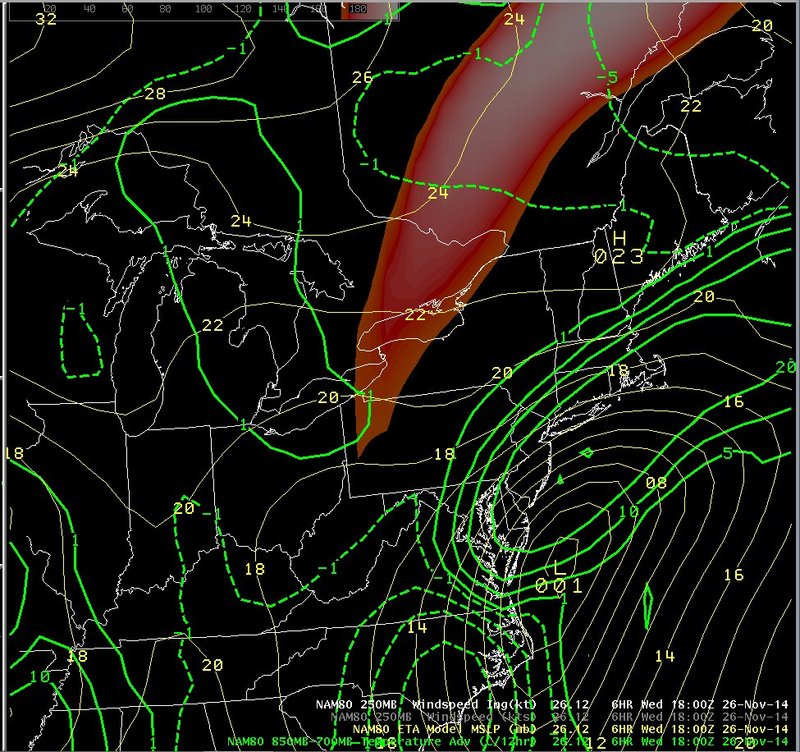

Flow pattern on November 26 - 250 mb wind speed, 850-700 mb temperature advection, fgen and 700 mb heights
Notes:
The data on this slide is for comparison with the schematic shown on the previous slide. Many aspects of this event indicated the potential for a quasi-stationary snow band over central New York and northern Pennsylvania, including the location of the area in the right entrance of the upper jet, weak temperature advection over the area, and strong frontogenesis in a confluent mid-level flow pattern.
Switch images by moving your mouse pointer over numbered buttons...
|
|
|
Slide 9
